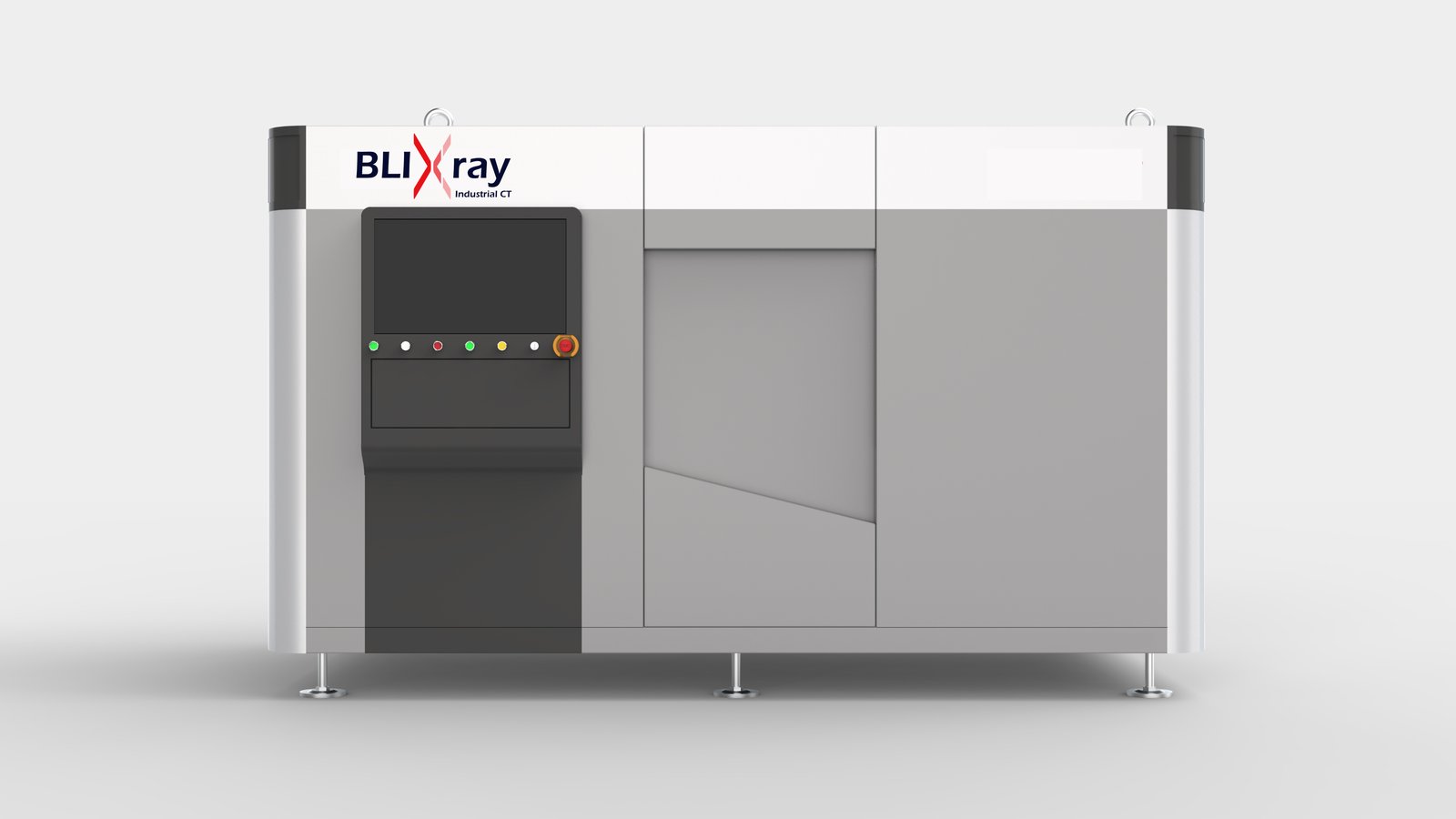

Microfocus laboratory CT
BLCT-MICROLAB
Microfocus laboratory CT
BLCT-MICROLAB is a microfocus laboratory CT for detail inspection and measurement. With sources up to 300 kV and a 3D resolution of 3 µm it covers most small and medium-sized parts.
Request a quote
Technical data
| X-ray source | 100 / 190 / 225 / 300 kV, open or closed tube, optional dual source |
|---|---|
| Resolution | 2D 0.5 µm, 3D 3 µm |
| Part size | up to 600 × 600 × 800 mm |
| Part weight | up to 100 kg |
| Detector | flat panel, 139 µm pixel, 3072 × 3072 |
| Magnification | 1.3 to 100+ |
| Axes | 7 |
| Measuring accuracy | 4.5 + L/100 µm |
Versions
| Size S | scan volume ø 400 × 340 mm |
|---|---|
| Size H | scan volume ø 625 × 650 mm |
| Size N | scan volume ø 665 × 800 mm |
Configuration and values depend on version and task; the binding data sheet comes with the quotation.
